| Camera | ||
| Image Sensor | 1/2.8″ CMOS | |
| Resolution | 1920 (H) × 1080 (V) | |
| Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | |
| Day & Night | Auto(ICR)/Color/B/W | |
| Min. Illumination | 0.005 lux@F1.6 (Color,30 IRE)0.0005 lux@F1.6 (B/W,30 IRE)0 lux (Illuminator on) | |
| SNR (dB) | >56 dB | |
| Angle Adjustment | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
|
| Lens | ||
| Lens Type | Fixed-focal | |
| Lens Mount | M12 | |
| Focal Length | 2.8 mm;3.6 mm | |
| Aperture | F1.6 | |
| Field of View | 2.8 mm: H: 104°; V: 55°; D: 124° 3.6 mm: H: 88°; V: 44°; D: 105° |
|
| Iris Type | Fixed | |
| Close Focus Distance | 2.8 mm: 0.8 m (2.62 ft) 3.6 mm: 1.3 m (4.27 ft) |
|
| DORI Distance | 2.8 mm: 44.1 m(144.69 ft), 17.7 m(58.07 ft), 8.8 m(28.87 ft), 4.4 m(14.44 ft) 3.6 mm: 58.9 m(193.24 ft), 23.6 m(77.43 ft), 11.8 m(38.71 ft), 5.9 m (19.36 ft) |
|
| Illuminator | ||
| IR LEDs | 1 (IR LED); 1 (Warm light) | |
| IR Distance | Up to 30 m (98.43 ft) (IR LED) Up to 30 m (98.43 ft) (Warm light) |
|
| Illuminator Control | Auto;Manual | |
| Video | ||
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) | |
| Resolution | 1080p (1920 ×1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | |
| Main Stream | 1920 × 1080@(1–25/30 fps) | |
| Sub Stream | 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) | |
| Smart Codec | Smart H.265+; Smart H.264+ | |
| Video Frame Rate | Main stream: 1920 × 1080@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
|
| Stream Capability | 2 streams | |
| Bit Rate Control | CBR/VBR | |
| Video Bit Rate | H.264: 32 kbps–4096 kbps H.265: 12 kbps–4096 kbps |
|
| Day/Night | Auto(ICR)/Color/B/W | |
| BLC | Yes | |
| HLC | Yes | |
| WDR | DWDR | |
| Gain Control | Auto;Manual | |
| Noise Reduction | 3D NR | |
| Region of Interest (ROI) | Yes (4 areas) | |
| Mirror | Yes | |
| Privacy Masking | 4 areas | |
| Audio | ||
| Audio Compression | G.711a; G.711Mu; PCM; G.726 | |
| Built-in Microphone | Yes, built-in Mic | |
| Storage | ||
| Network Storage | FTP | |
| Network | ||
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P | |
| Interoperability | ONVIF (Profile S; Profile T); CGI | |
| API | Yes | |
| User/Host | 6 (Total bandwidth: 24 M) | |
| Client | iOS;Android | |
| Web Browser | IE; Chrome; Firefox | |
| App | Smart PSS Lite; DSS; DMSS | |
| Interface | ||
| Network Interface | RJ-45 (10/100 Base-T) | |
| Alarm | ||
| General Alarm | Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; SMD (human); security exception | |
| Environment | ||
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | |
| Operating Humidity | ≤95% | |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | |
| Storage Humidity | ≤95% | |
| Water Protection | IP67 | |
| Power | ||
| Power Supply | 12 VDC/PoE (802.3af) | |
| PoE Standard | 802.3af | |
| Power Consumption | Basic: 1.8 W (12 VDC); 2.3 W (PoE) Max. (H.265 + intelligence on+ WDR + illuminator intensity): 4.5 W (12 VDC); 5.6 W (PoE) |
|
| Physical Information | ||
| Casing Material | Inner core: Metal+plastic Cover: Plastic | |
| Dimension | 100.9 mm × Φ109.9 mm (3.97″ × Φ4.33″) | |
| Weight | Net Weight: 0.33 kg (0.73 lb) Gross Weight: 0.45 kg (0.99 lb) |
|
| Warranty Information | ||
| Warranty | 1 Year | |

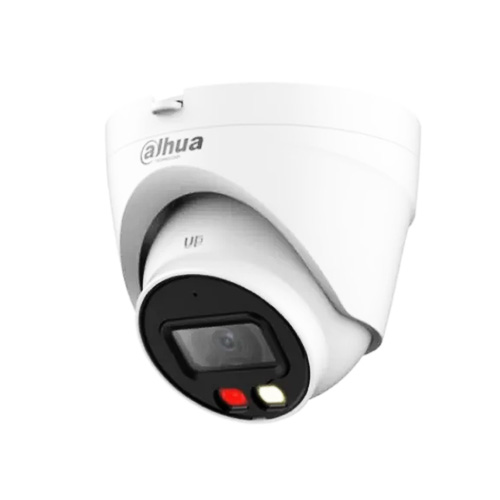

Dahua DH-IPC-HDW1239V-A-IL 2MP Smart Dual Light Eyeball IP Camera
- Model: DH-IPC-HDW1239V-A-IL
- Image Sensor: 1/2.8″ Progressive Scan CMOS
- Resolution: Max. 2 MP (1920 × 1080) at 25/30 fps
- Lens: 2.8 mm;3.6 mm, Aperture: F1.6, IR Distance: 30 meters
- Features: PoE, IP67, DWDR, 3D DNR, Smart Detection, Built-in Mic
3,050.00৳
18
People watching this product now!
Product Description
Dahua DH-IPC-HDW1239V-A-IL 2MP Smart Dual Light Eyeball IP Camera
- Model: DH-IPC-HDW1239V-A-IL
- Image Sensor: 1/2.8″ Progressive Scan CMOS
- Resolution: Max. 2 MP (1920 × 1080) at 25/30 fps
- Lens: 2.8 mm;3.6 mm, Aperture: F1.6, IR Distance: 30 meters
- Features: PoE, IP67, DWDR, 3D DNR, Smart Detection, Built-in Mic
3,050.00৳
11
People watching this product now!
Description
Description
| Camera | ||
| Image Sensor | 1/2.8″ CMOS | |
| Resolution | 1920 (H) × 1080 (V) | |
| Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | |
| Day & Night | Auto(ICR)/Color/B/W | |
| Min. Illumination | 0.005 lux@F1.6 (Color,30 IRE)0.0005 lux@F1.6 (B/W,30 IRE)0 lux (Illuminator on) | |
| SNR (dB) | >56 dB | |
| Angle Adjustment | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
|
| Lens | ||
| Lens Type | Fixed-focal | |
| Lens Mount | M12 | |
| Focal Length | 2.8 mm;3.6 mm | |
| Aperture | F1.6 | |
| Field of View | 2.8 mm: H: 104°; V: 55°; D: 124° 3.6 mm: H: 88°; V: 44°; D: 105° |
|
| Iris Type | Fixed | |
| Close Focus Distance | 2.8 mm: 0.8 m (2.62 ft) 3.6 mm: 1.3 m (4.27 ft) |
|
| DORI Distance | 2.8 mm: 44.1 m(144.69 ft), 17.7 m(58.07 ft), 8.8 m(28.87 ft), 4.4 m(14.44 ft) 3.6 mm: 58.9 m(193.24 ft), 23.6 m(77.43 ft), 11.8 m(38.71 ft), 5.9 m (19.36 ft) |
|
| Illuminator | ||
| IR LEDs | 1 (IR LED); 1 (Warm light) | |
| IR Distance | Up to 30 m (98.43 ft) (IR LED) Up to 30 m (98.43 ft) (Warm light) |
|
| Illuminator Control | Auto;Manual | |
| Video | ||
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) | |
| Resolution | 1080p (1920 ×1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | |
| Main Stream | 1920 × 1080@(1–25/30 fps) | |
| Sub Stream | 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) | |
| Smart Codec | Smart H.265+; Smart H.264+ | |
| Video Frame Rate | Main stream: 1920 × 1080@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
|
| Stream Capability | 2 streams | |
| Bit Rate Control | CBR/VBR | |
| Video Bit Rate | H.264: 32 kbps–4096 kbps H.265: 12 kbps–4096 kbps |
|
| Day/Night | Auto(ICR)/Color/B/W | |
| BLC | Yes | |
| HLC | Yes | |
| WDR | DWDR | |
| Gain Control | Auto;Manual | |
| Noise Reduction | 3D NR | |
| Region of Interest (ROI) | Yes (4 areas) | |
| Mirror | Yes | |
| Privacy Masking | 4 areas | |
| Audio | ||
| Audio Compression | G.711a; G.711Mu; PCM; G.726 | |
| Built-in Microphone | Yes, built-in Mic | |
| Storage | ||
| Network Storage | FTP | |
| Network | ||
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P | |
| Interoperability | ONVIF (Profile S; Profile T); CGI | |
| API | Yes | |
| User/Host | 6 (Total bandwidth: 24 M) | |
| Client | iOS;Android | |
| Web Browser | IE; Chrome; Firefox | |
| App | Smart PSS Lite; DSS; DMSS | |
| Interface | ||
| Network Interface | RJ-45 (10/100 Base-T) | |
| Alarm | ||
| General Alarm | Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; SMD (human); security exception | |
| Environment | ||
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | |
| Operating Humidity | ≤95% | |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | |
| Storage Humidity | ≤95% | |
| Water Protection | IP67 | |
| Power | ||
| Power Supply | 12 VDC/PoE (802.3af) | |
| PoE Standard | 802.3af | |
| Power Consumption | Basic: 1.8 W (12 VDC); 2.3 W (PoE) Max. (H.265 + intelligence on+ WDR + illuminator intensity): 4.5 W (12 VDC); 5.6 W (PoE) |
|
| Physical Information | ||
| Casing Material | Inner core: Metal+plastic Cover: Plastic | |
| Dimension | 100.9 mm × Φ109.9 mm (3.97″ × Φ4.33″) | |
| Weight | Net Weight: 0.33 kg (0.73 lb) Gross Weight: 0.45 kg (0.99 lb) |
|
| Warranty Information | ||
| Warranty | 1 Year | |
